Case

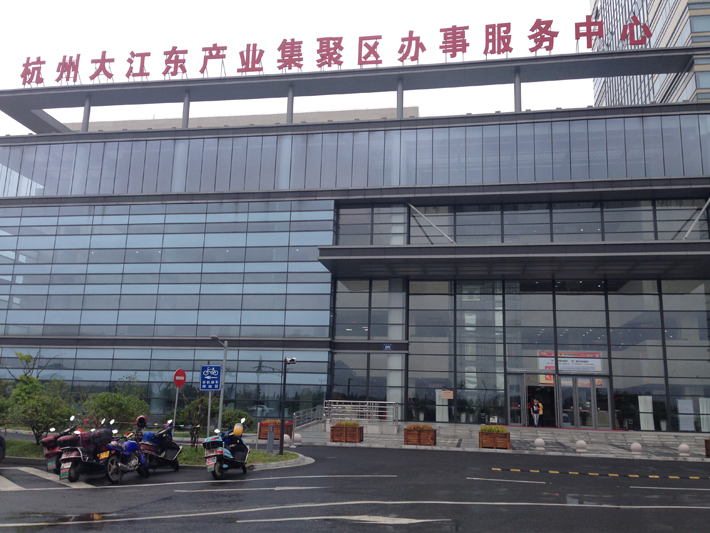

    It is the gateway to the east of Hangzhou, the strategic point of the Hangzhou Bay and the strategic zone of Hangzhou's urban development. It is located at the turning point of the "V" shaped industrial belt in Hangzhou Bay. Is the big city of Hangzhou economic metropolis "convergence Shanghai, into the Yangtze River Delta, improve the first degree, to create growth pole" an important gateway.

    Large East planning a total area of 427 square kilometers, of which land area of 348 square kilometers. Is the Yangtze River Delta a new round of economic development and transformation and upgrading of the important platform, known as "Hangzhou, Pudong."

    Dajiangdong to gather the development of high-end industries as the basis, and strengthen the comprehensive service function, high-end city functions, first-class ecological functions, to create industry-led, ecological priority, perfect service, high quality of the city integration demonstration area.

   The project consists of 6 small meeting rooms, 4 medium meeting rooms, 7 small evaluation rooms, 2 small opening rooms and 2 large opening rooms.

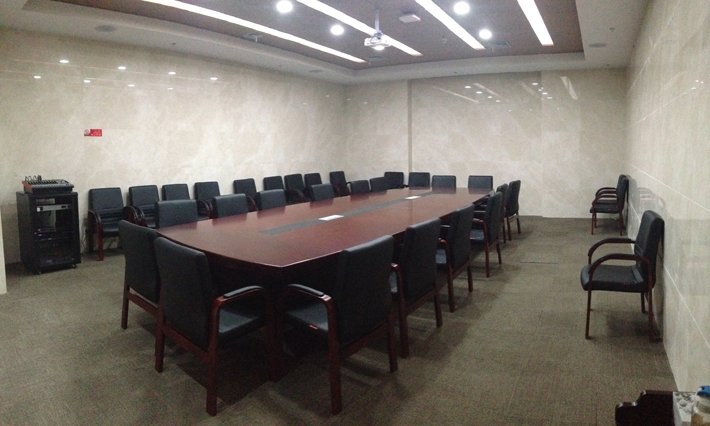

    Small meeting room, small evaluation room and small opening room, including digital display system, matrix switching systems and professional PA system in two parts. Combined with the size of the place, the display system uses 3500 lumens projector plus 100-inch electric screen as a large-screen display; matrix switching using a 4 into 4 VGA switch; PA system with four 8-inch ceiling speakers, Type power amplifier. Through the equipment equipped to meet the power of intelligent switches, conference speeches, sound and picture and more than the number of VGA signal switching and other functions.

    In the conference room including digital display system, matrix switching systems and professional PA system in two parts. Combined with the size of the place, the display system with 5000 lumens projector plus 120-inch electric projection screen as a large-screen display; matrix switch with a 4 into 4 VGA switch; PA system with 6 8-inch ceiling speakers. 1 units of combined power amplifier. Through the equipment equipped to meet the power of intelligent switches, conference speeches, sound and picture and more than the number of VGA signal switching and other functions.

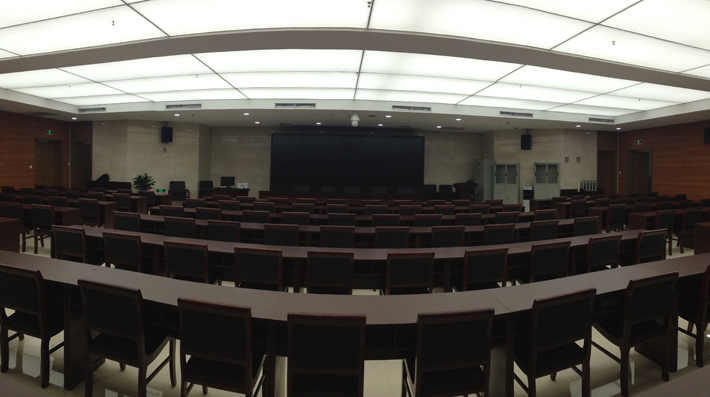

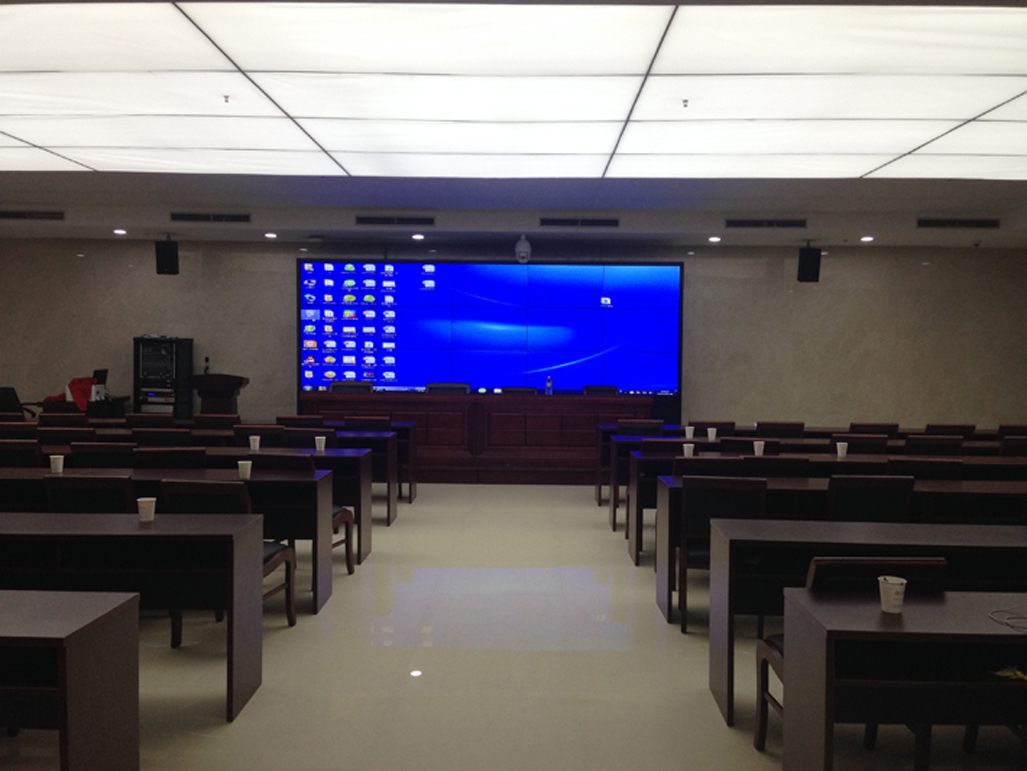

   Large opening room, including digital display systems, matrix switching systems, centralized control systems and professional sound reinforcement system. According to customer demand, combined with the size of the premises, display system configuration 15 LCD screen, using 3 * 5 stitching architecture, as the big screen display. Matrix switch using a 10-way high-definition mixed-card matrix, and the other configuration of a VGA input board, an HDMI input board and an HDMI output board to meet the 2-way VGA signal, 2-way HDMI signal mixed switch to 2-way HDMI signal output display. Sound reinforcement system uses two 10-inch full-range speakers as the main speaker, the other configuration of four 8-inch full-range speakers as auxiliary audio, to ensure the venue sound pressure level size and sound field uniformity; to ensure a high level of language clarity, Position echo-free, trembling echo and sound focus and other sound defects for the PA system is configured with a 2 into 8 out of the audio processor. Audio processor is a digital audio signal processing equipment. It converts the inputted analog signal into digital signal, and then carries on a series of tunable arithmetic processing to the digital signal to meet the application demands of improving sound quality, matrix mixing, de-noising, canceling echo and eliminating feedback. And then through the digital-analog conversion output multi-channel analog signal. Another set of a set of two sets of a hand-held wireless microphone, a set of two dragged a wireless microphone and two wired gooseneck microphone to meet the needs of fixed and mobile speech. And a FSC-900 power supply sequencer, the power sequencer can be in accordance with the order from the former device to the subsequent device to start the power supply, turn off the power supply from the post-class to the former order to shut down all types of electrical equipment, so that Can effectively unified management and control of various types of electrical equipment, to avoid human error operation, while reducing the electrical equipment in the moment of the power switch on the impact of power, but also to avoid the impact of the current induced by the device to ensure that the entire The stability of electrical systems and the safety of electrical equipment. Centralized control system uses a centralized control host and an 8-channel power controller, through the IPAD to achieve the signal switching, sound size, system power, DVD and other intelligent control. Through the equipment equipped to meet the power of intelligent switches, conference speeches, more and more types of signal switching, sound and painting and Mao and intelligent control and other functions.

The third opening room

Fourth opening room
